Product Overview

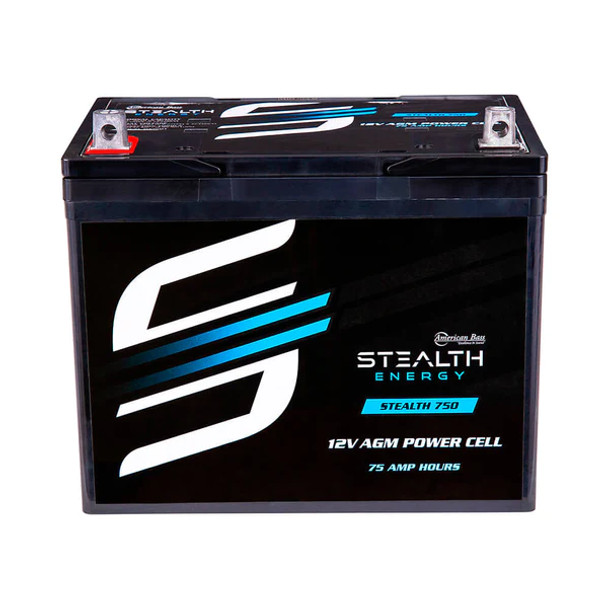

American Bass Stealth Energy STEALTH750 | 12-Volt 75AH AGM Power Cell Battery
Introducing Stealth Energy Batteries, your ultimate solution for high-performance, energy-efficient power storage. Designed with cutting-edge technology, these batteries provide a reliable energy source for all your car audio needs.
STEALTH750 - Ideal Secondary Battery for Amplifiers up to 1800W RMS
Nominal Voltage: 12 V
Nominal Capacity (20hr): 75.0 AH
Approx Weight: 22.3 Kg (49.2lbs)
Terminal: T14
Container Material: ABS
Max. Discharge Current: 900A (5S)
Internal Resistance Approx: 6.6mΩ
Nominal Operating Temp. Range: 25.3 C (77.5 F )
Dimensions:
Length: 260.3mm (10.20 inches)
Width: 168.2mm (6.61 inches)
Container Height: 208.3mm (8.19 inches)
Total Height (With Terminal): 214.3mm (8.43 inches)
Rated Capacity:
80.40 Ah/4.02A: (20hr ,1.80v/cell,25 C/77 F)
75.0 Ah/7.50A: (10hr ,1.80v/cell,25 C/77 F)
65.8 Ah/13.2A: (5hr ,1.75v/cell,25 C/77 F)
59.6 Ah/19.9Aa: (3hr ,1.75v/cell,25 C/77 F)
48.5 Ah/48.5A: (1hr ,1.60v/cell,25 C/77 F)
Capacity Affected By Temperature:
40 C (104 F): 103%
25 C (77 F): 100%
0 C (32 F): 86%
Operating Temp. Range:
Discharge: -15~50 C (5~122 F)
Charge: 0~40 C (32~104 F)
Storage: -15~40 C (5~104 F)
Cycle Use:
Initial Charging Current Less Than 22.5A
Voltage 14.4v~15.0v At 25 C (77 F) temp. Coefficient -30mv/ C
Standby Use:
No Limit On Initial Charging Current
Voltage 13.5v~13.8v At 25 C (77 F) temp. Coefficient -20mv/ C
Self Discharge:
Batteries May Be Stored For Up To 6 Months at 25 C (77 F) And Then A Freshening Charge Is Required.
For Higher Temperatures The Time Interval Will Be Shorter.
