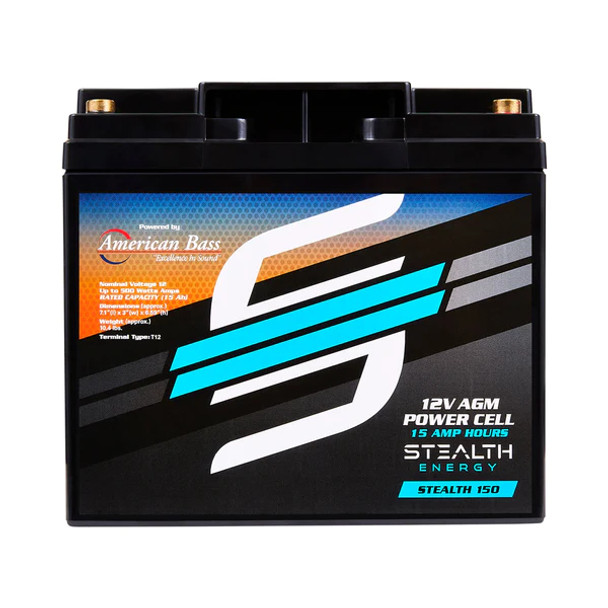

American Bass Stealth Energy STEALTH150 | 12-Volt 15AH AGM Power Cell Battery

American Bass USA

(No reviews yet) Write a Review
MSRP: $98.95
$66.99
(You save $31.96 )
Condition:
New
Shipping:
Free Shipping
Adding to cart… The item has been added

Product Overview

American Bass Stealth Energy STEALTH150 | 12-Volt 15AH AGM Power Cell Battery

Introducing Stealth Energy Batteries, your ultimate solution for high-performance, energy-efficient power storage. Designed with cutting-edge technology, these batteries provide a reliable energy source for all your car audio needs.

STEALTH150 - Ideal Secondary Battery for Amplifiers up to 500W RMS

Nominal Voltage: 12 V
Nominal Capacity (20hr): 15.0 AH
Approx Weight: 4.9 Kg (10.8lbs)
Terminal: T12
Container Material: ABS
Max. Discharge Current: 225A (5S)
Internal Resistance Approx: 18mΩ
Nominal Operating Temp. Range: 25.3 C (77.5 F )

Dimensions:

Length: 181.52mm (7.14 Inches)
Width: 76.52mm (3.01 Inches)
Container Height: 167.52mm (6.59 Inches)
Total Height (With Terminal): 167.52mm (6.59 Inches)

Rated Capacity:

15.0 Ah/0.75a: (20hr ,1.80v/cell,25 C/77 F)
14.0 Ah/1.40a: (10hr ,1.80v/cell,25 C/77 F)
12.8 Ah/2.55a: (5hr ,1.75v/cell,25 C/77 F)
11.5 Ah/3.83a: (3hr ,1.75v/cell,25 C/77 F)
9.42 Ah/9.42a: (1hr ,1.60v/cell,25 C/77 F)

Capacity Affected By Temperature:

40 C (104 F): 103%
25 C (77 F): 100%
0 C (32 F): 86%

Operating Temp. Range:

Discharge: -15 50 C (5 122 F)
Charge: 0 40 C (32 104 F)
Storage: -15 40 C (5 104 F)

Cycle Use:

Initial Charging Current Less Than 4.5a.
Voltage 14.4v~15.0v At 25 C (77 F) temp. Coefficient -30mv/ C

Standby Use:

No Limit On Initial Charging Current
Voltage 13.5v~13.8v At 25 C (77 F) temp. Coefficient -20mv/ C

Self Discharge:

Batteries May Be Stored For Up To 6 Months at 25 C (77 F) And Then A Freshening Charge Is Required.
For Higher Temperatures The Time Interval Will Be Shorter.



Please feel free to send us a message if you have any questions about this item or other items for sale!

Warranty Information

1 Year Manufacturer's Warranty
