Product Overview

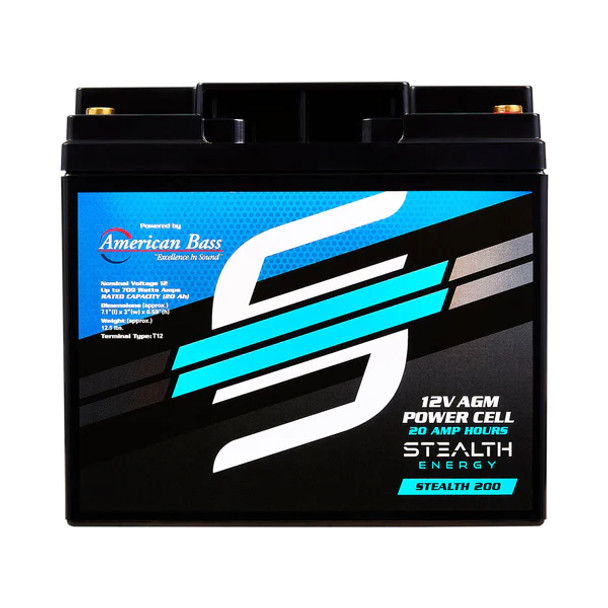

American Bass Stealth Energy STEALTH200 | 12-Volt 20AH AGM Power Cell Battery
Introducing Stealth Energy Batteries, your ultimate solution for high-performance, energy-efficient power storage. Designed with cutting-edge technology, these batteries provide a reliable energy source for all your car audio needs.
STEALTH200 - Ideal Secondary Battery for Amplifiers up to 700W RMS
Nominal Voltage: 12 V
Nominal Capacity (20hr): 20.0 AH
Approx Weight: 5.78 Kg (12.74lbs)
Terminal: T12
Container Material: ABS
Max. Discharge Current: 300A (5S)
Internal Resistance Approx: 15mΩ
Nominal Operating Temp. Range: 25.3 C (77.5 F )
Dimensions:
Length: 181.51mm (7.14 Inches)
Width: 77.12mm (3.03 Inches)
Container Height: 167.51mm (6.59 Inches)
Total Height (With Terminal): 167.52mm (6.59 Inches)
Rated Capacity:
20.0 Ah/1.00a: (20hr ,1.80v/cell,25 C/77 F)
18.6 Ah/1.86a: (10hr ,1.80v/cell,25 C/77 F)
17.0 Ah/4.40a: (5hr ,1.75v/cell,25 C/77 F)
15.3 Ah/5.10a: (3hr ,1.75v/cell,25 C/77 F)
12.6 Ah/12.6a: (1hr ,1.60v/cell,25 C/77 F)
Capacity Affected By Temperature:
40 C (104 F): 103%
25 C (77 F): 100%
0 C (32 F): 86%
Operating Temp. Range:
Discharge: -15~50 C (5~122 F)
Charge: 0~40 C (32~104 F)
Storage: -15~40 C (5~104 F)
Cycle Use:
Initial Charging Current Less Than 6.0A
Voltage 14.4v~15.0v At 25 C (77 F) temp. Coefficient -30mv/ C
Standby Use:
No Limit On Initial Charging Current
Voltage 13.5v~13.8v At 25 C (77 F) temp. Coefficient -20mv/ C
Self Discharge:
Batteries May Be Stored For Up To 6 Months at 25 C (77 F) And Then A Freshening Charge Is Required.
For Higher Temperatures The Time Interval Will Be Shorter.
