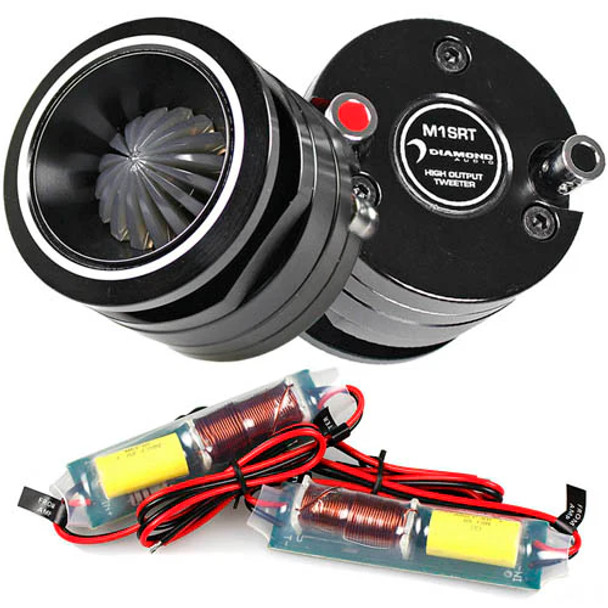

Diamond Audio M1SRT | 1 Inch 100W 4 Ohm Compression Horn Tweeters (Pair)

Diamond Audio M1SRT | 1 Inch 100W 4 Ohm Compression Horn Tweeters (Pair)

Diamond Audio never rests on its laurels! The Motorsport series continues its path of success by expanding its high compression super tweeter assortment for this year.

Introducing an array of super tweeters to comply with any installation and/or fabrication work, Diamond Audio's solution-driven Motorsport series tweeters will complete any high-end audio performance system build!

The Motorsport series super tweeter portfolio consists of standard and short horn version designs, proprietary phase plug technology for ultimate off-axis sound performance and response, shallow-depth tweeter casing, swivel feature function, and flexible mounting options for that custom build!

Never settle for less, look to Motorsport series by Diamond Audio for the ultimate sound system experience!

Specs:

• MAX Power Handling: 100W

• RMS Power Handling: 50W

• Impedance: 4 Ohm

• Frequency Range: 3KHz - 20KHz

• Sensitivity: 107dB

• Cut-out Diameter: 1.75" (44.45mm)

• Front of Horn to Magnet Depth: 0.83" (21mm)

• Depth Front to Back Magnet: 2.3" (58.7mm)

• Over-All Depth: 2.22" (56.4mm)

• Over-All Diameter: 2.28" (57.9mm)

Features:

• Composite Rubber Mounting Frame

• 12dB Crossover Included for Maximum Protection

• Radial Slit Phase Plug for Better Response

• Proprietary Phase Plug Technology

• Shallow-Depth Tweeter Casing

• Swivel Feature Function

• Flexible Mounting Options

Please feel free to send us a message if you have any questions about this item or other items for sale!
