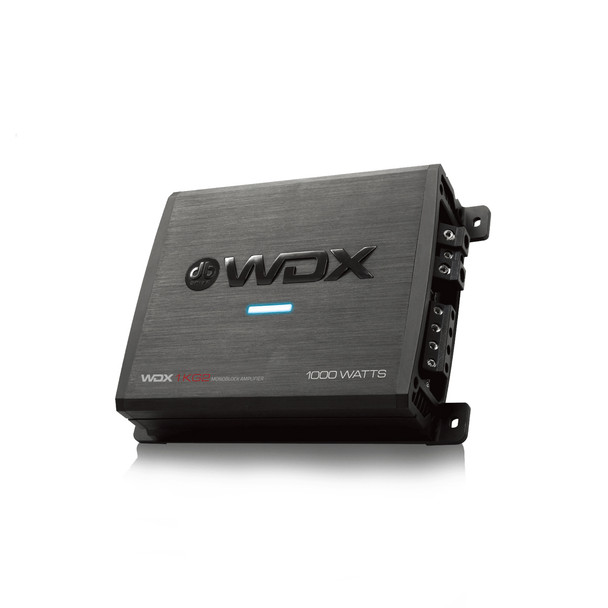

DB Drive WDX 1KG2 | 1000W Monoblock Subwoofer Amplifier
The DB Drive WDX amplifiers includes built-in variable crossovers. The crossover features a variable frequency selection for precise low pass filtering for all mono amplifiers. For added low frequency performance the amplifiers are equipped with a selectable 6dB-12dB bass boost @ 45Hz.
Specs:
• Rated Power @ 14.4 Volts
• 1 x 1000 Watts @ 1 Ohm
• 1 x 500 Watts @ 2 Ohm
• 1 x 250 Watts @ 4 Ohm
• Frequency Response: 10Hz ~ 250Hz
• S/N Ratio: < 95 dB
• Variable Phase Shift Control: 0 ~ 180
• Variable Subsonic Filter: 10Hz ~ 50Hz
• Variable Low Pass Filter: 50Hz ~ 220Hz
• Damping Factor: 100m<
• Dimensions (L x W x H): 9" x 7.08" x 2.25"
Features:
• 1 Ohm Mono Capability
• Blue LED POWER-ON Indicator
• Variable Low Level RCA Input
• Variable 12dB Per Octave Low-Pass X-Over
• Direct-Connect Speaker Terminals
• Buffered Pre-Amp Input
• Selectable 6dB-12dB Boost @ 45Hz
• DRIVESINK Heat Management System
• Unregulated DB-DC PWM Power Supply
• Speaker Short Circuit Protection
• Bass Remote Included
