Product Overview

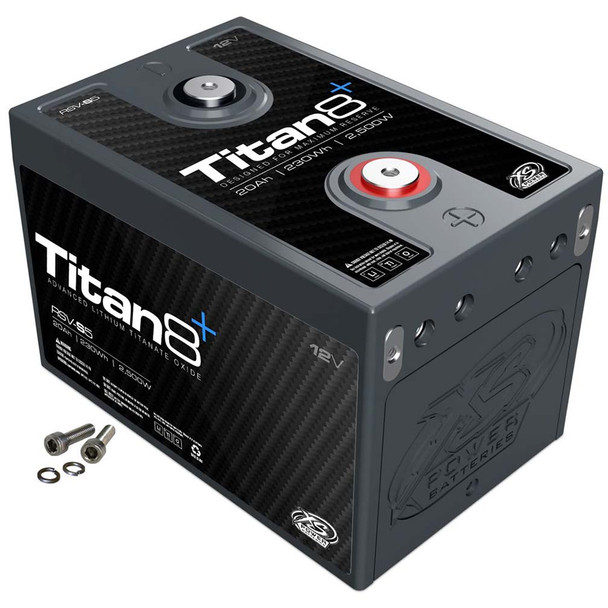

XS Power TITAN8 RSV-S5 | Lithium 12-Volt 20AH Power Cell Performance Battery | 2500W
This Titan8 Series Lithium Titanate Oxide (LTO) series uses a cell that is designed to maximize capacity and deep cycling abilities. They have double the amount of storage energy but only half of the instant discharge energy. This gives it double the capacity rating, but half of the wattage rating.
The built in 2/0 bussing allows up to 4 Positive and 4 Negative hidden direct connections to each module without the need for any external exposed bussing, while still leaving two easily accessible top terminals and four series or parallel expansion terminals to easily build a bank of nearly any configuration from 12V, 24V, 36V, or any configuration imaginable.
Ideal Secondary Battery for Amplifiers up to 2500W RMS
Specs:
• WEIGHT: 8.00 LBS
• LENGTH: 7.40 IN
• HEIGHT: 5.00 IN
• WIDTH: 4.85 IN
• MAX AMPS: 1000
• CA: 500A
• CA PB EQ: 750A
• AH: 20
• AH PB EQ: 60
• ENERGY WH: 230
Reserve Modules - Designed for Peak Capacity
M6 Terminal Hardware Included
