Product Overview

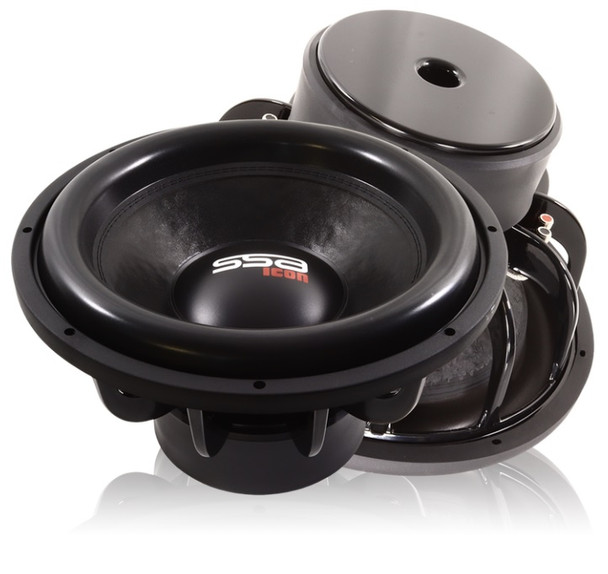

(1) SSA ICON 15 Inch 1250W RMS DVC 2 Ohm Subwoofer | ICON-15D2
Now presenting the totally overhauled SSA Icon. This new design pays homage to the original SSA Icon while advancing forward the Icon name. Since 2006, the SSA Icon has always been an unwavering, top-end choice in the world of the high-power handling, sound quality subs. All the while, always staying very affordable with classic looks. The SSA Icon is and has always been very versatile across the range of different bass requirements. From needing a little stronger low frequency presence in a modest install, to a monster demo vehicle meant to take hours of heavy abuse. Very at home in modest size sealed boxes and flexible in low tuned ported boxes, the SSA Icon can work in almost any install need.
For the hard-core installs, the all new SSA Icon moves to an even bigger motor for greater motor strength. To keep all things cool inside, we brought back the pole vent allowing air to pass through both ends of the motor. With dual flat weaved leads, the SSA Icon can really hammer away for a long time with out showing any signs of wear.
For the sound quality side of things, SSA took a page from the Xcon and incorporated a shorting ring to keep inductance in check, as well as moved to a higher roll surround and adjusted suspension for a little more Xmax.
Conservatively rated at 1250 rms, the SSA Icon can really take some power if you want to have some thunderous output. But, at the same time, if you just want to add a smooth and easily blended bassline to your daily driving the SSA Icon can do it too, even in smaller sealed boxes. With dual Nomex progressive spiders and high roll surround, the SSA Icon has the suspension to really stretch its legs while keeping the moving mass under control.
If you want a class leading sound quality and vision blurring output, but do not want to make your checking account sweat, the ICON remains the educated choice for people who expect the best.
Features:
• Power Handling: 1250W RMS
• 3.00 Inch Extra Long 4-Layer Copper Voice Coil
• Aluminum Former & Shorting Ring
• Stitched Tinsel Leads
• Dual Nomex Progressive Spider Construction
• Spring-Loaded Push Terminals
• Pressed Paper Cone w/ Large Dome Dustcap
• High Roll Stitched Surround
• Large High-Energy Magnet Structure & Vented Pole
Specifications:
- Re: D4 / D2
- Fs: 29.1 / 28.4 hz
- Qms: 2.45
- Qes: 0.72 / 0.70
- Qts: 0.58 / 0.54
- Cms: 72.4 mm/N
- Mms: 435.6 / 433.6 gr
- Bl: 21.1 / 21.1 N/A
- SPL: 85.9 / 86.3 dB
- VAS: 62.44 L
- SD: 810cm^2
- Le: 3.7mH
- Xmax: 23mm
- RMS: 1250 watt
Box Recommendation:
• Sealed: 2.00 - 2.50 cu.ft.
• Ported: 3.25 - 3.75 cu.ft. @ 28-33 hz
• Sub Outside Diameter: 15.50"
• Cut Inside Diameter: 14.20"
• Mounting Depth: 8.50"
