Product Overview

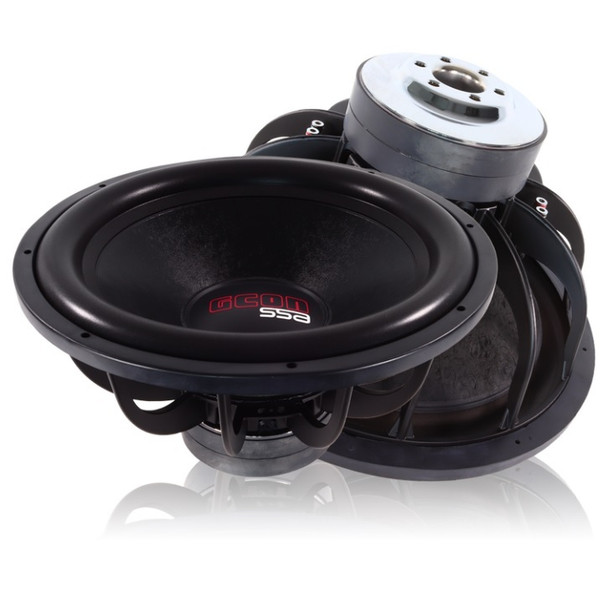

(1) SSA GCON 18 Inch 950W RMS DVC 4 Ohm Subwoofer | GCON-18D4
*Note: This Subwoofer Is Custom Built To Each Order. Please Allow 10-20 Days Build Time Prior To Shipping.
The all-new SSA GCON takes it well past the next level, while still being Made-In-The-USA, staying affordable and adding an 18" version. With the all-new SSA GCON design, the added rear cooling channels and addition of more steel overall to the motor, SSA has increased motor strength and cooling for those installs that want their bass to hammer away for hours without fail. Due to the new bumped back plate, SSA was able to increase coil length and improve Xmax to ratchet up even more low frequency response than before.
All-in-all, for the most balanced performance, most well rounded sound, very versatile enclosure capability, and stay extremely affordable being Made-In-The-USA, the all new SSA GCON is the premier subwoofer option.
Features:
• Power Handling: 950W RMS
• 3.00 Inch 4-Layer Aluminum Voice Coil
• Woven Tinsel Leads
• Spring-Loaded Push Terminals
• Dual Progressive Spider Suspension
• Heavy-Duty Pulp Fiber Cone
• Double Layer Hybrid Foam Surround
• High-Energy Double Stacked Magnet Structure
• Pole Venting & Rear Motor Venting
Specifications:
- Re: D4 / D2
- Fs: 25.5 / 24.9 hz
- Qms: 6.49
- Qes: 0.82 / 0.78
- Qts: 0.78 / 0.74
- Cms: 0.14 mm/N
- Mms: 304.5 / 306.5 gr
- Bl: 16.3 N/A
- SPL: 93.1 / 93.8 dB
- VAS: 178.0 L
- SD: 1210cm^2
- Xmax: 23mm
- RMS: 950 watts
Box Recommendation:
• Sealed: 4.25 - 4.75 cu.ft
• Ported: 6.50 - 7.50 cu.ft. @ 27-34 hz
• Sub Outside Diameter: 18.50"
• Cut Inside Diameter: 16.75"
• Mounting Depth: 9.50"
