Product Overview

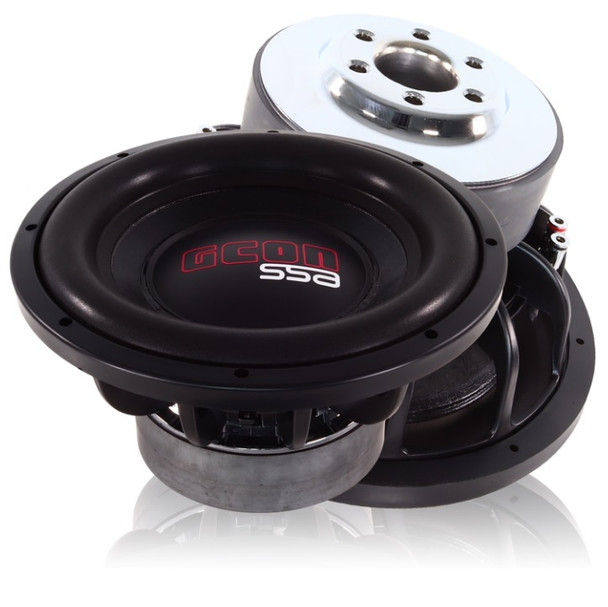

(1) SSA GCON 12 Inch 950W RMS DVC 4 Ohm Subwoofer | GCON-12D4
*Note: This Subwoofer Is Custom Built To Each Order. Please Allow 10-20 Days Build Time Prior To Shipping.
Features:
• Power Handling: 950W RMS
• 3.00 Inch 4-Layer Aluminum Voice Coil
• Woven Tinsel Leads
• Spring-Loaded Push Terminals
• Dual Progressive Spider Suspension
• Heavy-Duty Pulp Fiber Cone
• Double Layer Hybrid Foam Surround
• High-Energy Double Stacked Magnet Structure
• Pole Venting & Rear Motor Venting
Specifications:
- Re: D4 / D2
- Fs: 31.0 / 30.7 hz
- Qms: 4.69
- Qes: 0.57 / 0.53
- Qts: 0.53 / 0.51
- Cms: 0.14 mm/N
- Mms: 212.6 / 210.5 gr
- Bl: 16.3 N/A
- SPL: 86.8 / 87.1 dB
- VAS: 44.0 L
- SD: 480cm^2
- Xmax: 23mm
- RMS: 950 watts
Box Recommendation:
• Sealed: 1.00 - 1.25 cu.ft
• Ported: 2.00 - 2.50 cu.ft. @ 28-33 hz
• Sub Outside Diameter: 12.37"
• Cut Inside Diameter: 11.20"
• Mounting Depth: 6.375"
Please feel free to send us a message if you have any questions about this item or other items for sale!
Warranty Information
Manufacturer's Warranty
