Product Overview

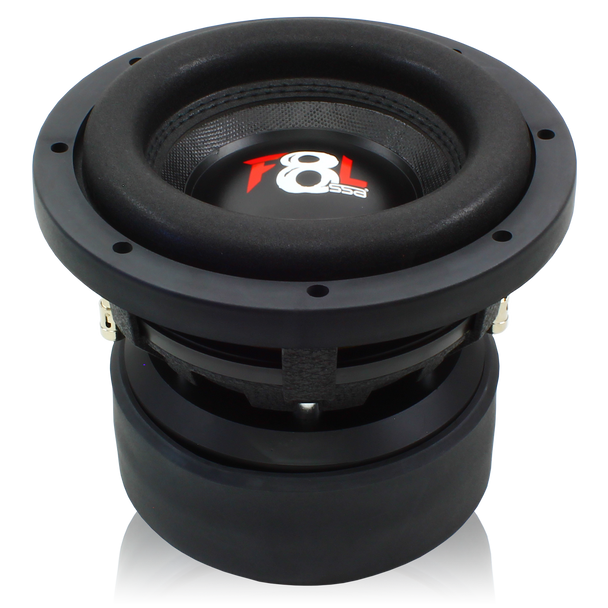

(1) SSA F8L D2 | 8 Inch 650W RMS Dual 2 Ohm Subwoofer
Welcome to the very first 8” sub worthy to wear the SSA logo. A decade of reknown SSA signature sound that is pure, warm, and precise, while having tremendous output that is now finally availble in the new SSA F8L 8” sub. (Pronounced “Fatal”) Vicious in looks, and pure beef in build, the all new SSA F8L 8” sub is an absolutle tank just like every other SSA sub, but finally in a compact package. Conservatively ratted at 650 watts, right off the bat, you can tell the SSA F8L means business.
For the serious mechanical side of the design, the SSA F8L employs a very powerful motor with dual high strength Y35-140 oz magnets protected by a motor boot, yet the inductance is kept in check as the F8L touts a full aluminum shorting ring. To handle some serious power, the 4-layer copper coil is a 2.5” round wire that is 45.9mm high. Keeping everything under control for a wide array of conditions, is a pair of Nomex spiders and a dual layer high roll foam surround. As with all SSA subs, the SSA F8L has a non-pressed pulp paper cone. The large spring loaded push terminals make wiring up easy and quick, while the high tinsel count leads can carry plenty of power to the copper coil.
For durable and consistent performance for years to come, the SSA F8L was designed to stay cool under the harsh daily abuse. With cooling spacers allowing extra air flow to the coil and motor, and a vented Aluminum former, you will never have to sweat the thermal limits. Doesn't matter if you are doing an arsenal of subs or a single sub for adding some clean and powerful bass in a small space, the SSA F8L will most certainly get it done. Port this little monster and send it some clean power and you will be hard pressed to hide an evil smile. With out question, SSA F8L is a killer choice in the world of the high end 8” subwoofers.
Features:
• Power Handling: 650W RMS
• 2.50 Inch 4 Layer High-Temp Copper Coil w/ 45.90mm Winding Height
• Vented Aluminum Former
• Dual Nomex Spider Construction
• Attached High Tinsel Count Leads
• Spring-Loaded Push Terminals
• Non-Pressed Paper Cone w/ Wide Roll Foam Surround
• Stacked 140oz. Magnet Structure w/ Aluminum Shorting Ring & Cooling Spacers
Specifications:
- Re: D2
- Fs: 32.1hz
- Qms: 4.31
- Qes: 0.27
- Qts: 0.25
- Rms: 6.7 kg/s
- Cms: 0.17 mm/N
- Mms: 143.5 gr
- Bl: 20.8 N/A
- SPL: 82.6 db
- Vas: 9.7 L
- Rp: 57.0 ohm
- Lp: 70.0 mH
- Cp: 496.4 uF
- Le: 3.16 mH
- Sd: 201.93cm²
- Xmax: 15mm
Box Recommendation:
• 0.55 cubes @ 31hz (after displacement)
• Sub Outside Diameter: 8.75"
• Cut Inside Diameter: 7.375"
• Mounting Depth: 6.50"
