Product Overview

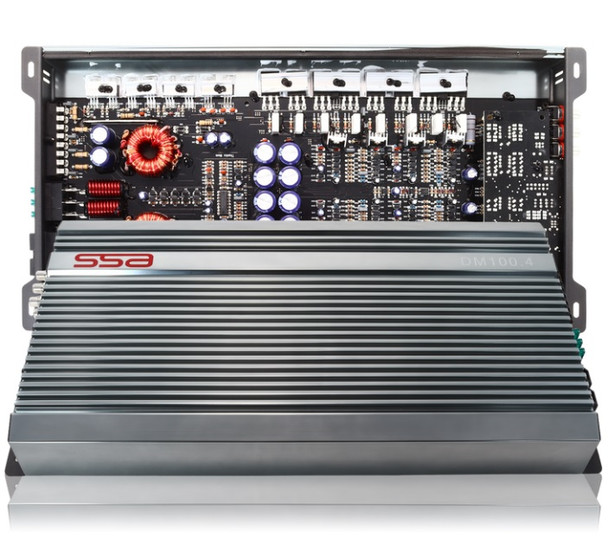

SSA Demon DM100.4 | 700W RMS 4 Channel Full Range Amplifier

Introducing the all new SSA DM100.4 amplifier. An old school approach, with updated components, for the most discerning of ears. If your front stage is lacking warmth and clarity, its time to upgrade. SSA's first 4 channel amplifier in their high-end, sound quality, Class- A/B - Demon amplifier line. The SSA DM100.4 is the elite choice for that high end active front stage, premium passive components, and especially a sound quality sub (SSA Demon in a 3-way set up). Stellar looks to match the design and components. Don't let your speakers or your ears down, #levelup to the all new SSA DM100.4 amplifier.

Specs:

• 175W RMS x 4 @ 2 Ohms

• 100W RMS x 4 @ 4 Ohms

• 350W RMS x 2 @ 4 Ohms (Bridged)

• Input Sensitivity: 200mV - 6.0V

• Frequency Response: 10Hz - 30KHz +/- 0.5dB

• THD: Less Than 0.01%

• S/N Ratio: > 97dB

• Channel Separation: > 92dB

• Damping Factor: @100Hz 4 ohm > 200

• High Pass Filter: 15Hz - 500Hz / 50Hz - 3KHz

• Low Pass Filter: 50Hz - 500Hz / 500Hz - 5KHz

• Variable Bass Boost: 0dB to 12dB @ 45Hz

• Fusing: 3 x 35A

• Dimensions: 17.7" x 8.9" x 2.2"

Features:

• Fully active capable crossover network
• Bass Boost Feature for Channels 3/4 when being used for a subwoofer in 3-way set up
• Angled Terminals for show quality installations
• Full Complimentary low distortion Class AB design
• Tiffany Style RCA connectors
• Full Complimentary low distortion Class AB design
• Butterworth Crossover Filters
• The op amps featured are TI chips w/BB technology high performance audio grade IC's
• Docking Pads® to reduce vibration & extend the life the amplifier
• DC, Short Circuit, Thermal & Overload Protection, on board fusing
• Diagnostic LEDs
