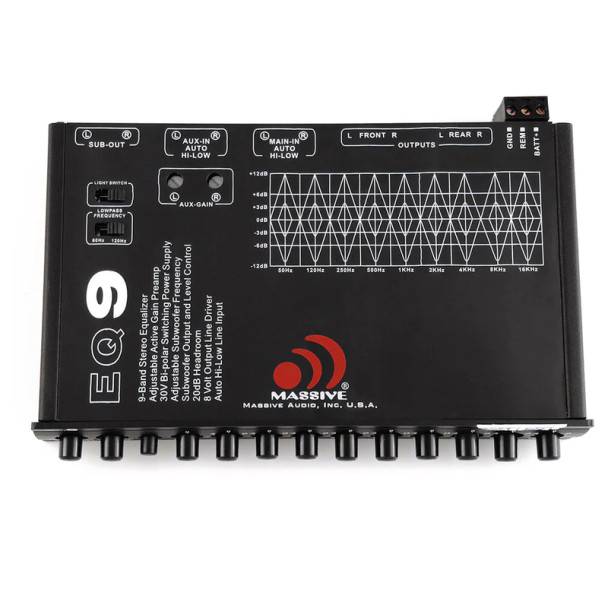

Massive Audio EQ9 | 9 Band Graphic Equalizer with 8V Output Line Driver

Massive Audio EQ9 | 9 Band Graphic Equalizer with 8V Output Line Driver

The EQ9 is a 9-band stereo equalizer/crossover specifically created for the mobile environment. The EQ9 provides powerful features in a compact size.

Features:

• 1/2 DIN

• 9 Band Graphic Equalizer

• Gold Plated RCA Connectors

• Frequency Response: 10Hz ~ 50Hz =/-1dB

• Center Freq: 50Hz, 120Hz, 250Hz, 500Hz, 1KHz, 4KHz, 8KHz, 16KHz

• Each Frequency Adjustable From -12dB to +12dB

• * -15dB to +15dB for Subwoofer Frequencies

• Subwoofer Output Built-In 18dB per Octave electronic X-Over fixed @ 60Hz or 120Hz

• 8 Volt Output Line Driver

• RCA Auxiliary Input (Rear) inputs for MP3, DVD or Phone

• 6-Channel / 7 Volt RCA Outputs (Front/Rear/Subwoofer)

• Separate Controls for Master, Sub, Volume (Sub level) Front / Rear, Fader, Main or AUX Inputs

• Extended Frequency Response from 20HZ ~ 30Hz / 100dB S/N

• Adjustable Master Volume Level Control

• Adjustable Active Gain Preamp

• 30V Bi-Polar Switching Power Supply

• 20dB Headroom

• Adjustable Subwoofer Level Control

• Input Impedance 20K Ohms

• Output Impedance 2K Ohms

• Stereo Separation 82dB / 1KHz

• Operating Voltage 11V - 15V Negative Ground

• ISO Mounting Holes / Removable Trim Ring

• Switchable LED from orange to soft blue to match interior lighting

• 2-Channel RCA Input with Adjustable Gain

• Dimensions: 7"(W) x 1"(H) x 4 1/8"(D)
