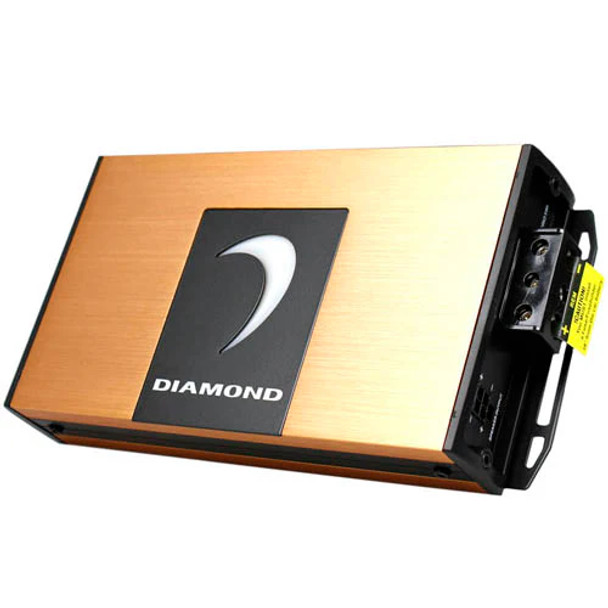

Diamond Audio MICRO1V2 | 500W RMS Monoblock Subwoofer Amplifier
Discover exceptional sound quality in a compact design with Diamond Audio’s MICROV2 series of amplifiers. Utilizing ultra-efficient full-range Class D topology, these amplifiers deliver impressive power despite their small size. The MICROV2 series also features advanced Rollback/Thermal protection, ensuring continuous and uninterrupted play without any risk of shutdown.
The installation possibilities are endless with the MICROV2 series! These amplifiers boast an ultra-compact, high-density aluminum alloy chassis, making them versatile and easy to fit in any setup. Balanced differential inputs ensure noise-free operation, while full-range digital Class D technology with Direct FET power MOSFET output stage guarantees top-notch performance.
With 12dB per octave adjustable crossovers, Diamond bass boost EQ (12dB @ 45Hz), and advanced rollback power circuitry to keep your amp cool, the MICROV2 series keeps your music playing smoothly. The selectable 3-option Auto Turn-On Mode circuit is designed to work with any OEM head unit, simplifying installation and making it more convenient.
When you need quality and performance in a small package, look no further than the MICROV2 series from Diamond Audio. Upgrade your audio system today and experience the perfect blend of power, efficiency, and flexibility.
Specs:
• RMS Power Rating: 500 W RMS
• RMS Power (2Ω): 300W
• RMS Power (4Ω): 175W
• Topology: Full-Range Class D
• Power Supply: Full PWM
• Power Supply (Threshold): 10.0VDC – 17.0VDC
• Idle Current: (0.7A)
• Distortion - THD (1KHz@4Ω): 0.5%
• Distortion - S/N Ratio (A weight @ 1W): -85dBA
• Distortion - S/N Ratio (A weight @ FP): -101.1dBA
• Input Sensitivity: 200mV – 10.0V
• Input Impedance - Low Input Level: 20 KΩ
• Input Impedance - AUX Input Level: 20 KΩ
• Output Impedance: 0.011Ω
• Damping Factor (50Hz@4Ω): >250
• Bandwidth (-3dB): 10Hz-350Hz
• Crossover (-12 dB/ Oct) Variable Low-Pass: 40Hz-400Hz
• Crossover (-12 dB/ Oct) Variable Sub-Sonic: 10Hz-55Hz
• FUSE Ratings - ATC: 25A
• Dimensions: 7.89″ x 4.0″ x 1.46″ (200.5 x 103 x 37.2 mm)
Features:
• Selectable REM / VOX / DC Turn On Modes
• Variable LPF X-Over
• Remote Bass Knob Included

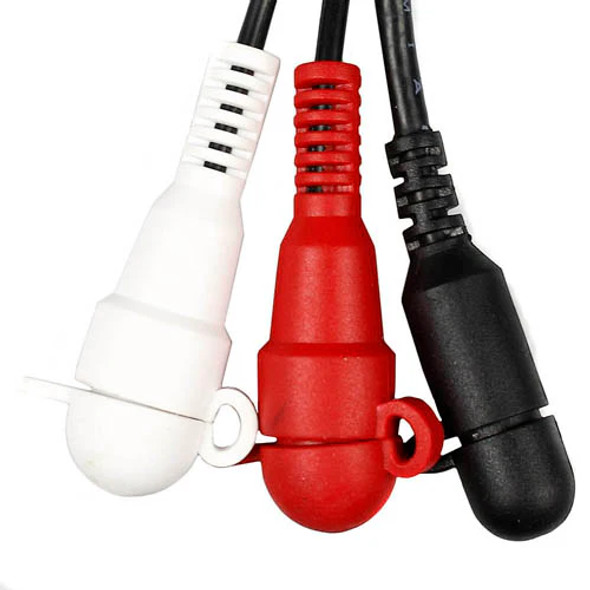

• Disconnected RCA Input & Speaker Output Harness Kits Included
