Product Overview

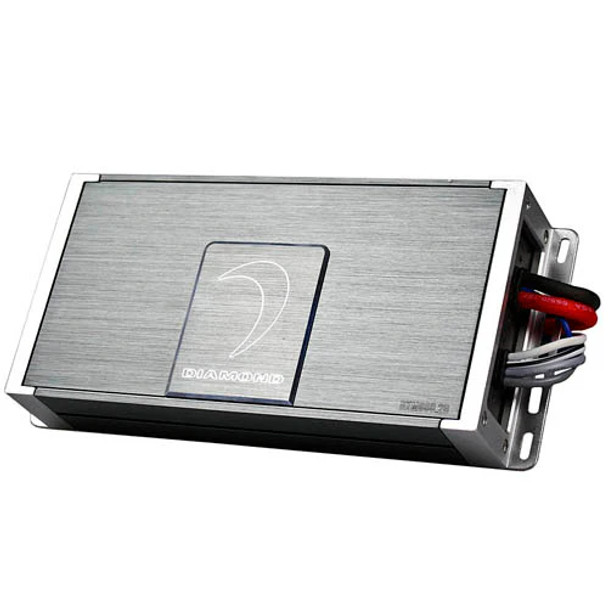

Diamond Audio DXM600.2D | 600W RMS 2 Channel Full Range Marine Amplifier
Introducing DXM series high-end marine amplifiers, meticulously designed for motorcycles, boats, ATVs, automobiles, and off-road vehicles. These amplifiers are exceptionally powerful and extremely reliable, engineered to deliver outstanding performance in the most demanding environments.
Built with IPX67-rated waterproof multi-layer circuit boards, these amplifiers are perfect for marine applications, ensuring durability and longevity. Enjoy noise-free operation with balanced differential inputs, and experience superior sound quality with full-range digital Class D technology and Direct FET power MOSFET output stage.
Fine-tune your audio system with 12dB per octave adjustable crossovers and phase control, providing precise system tuning. The selectable 3-option Auto Turn-On Mode circuit is designed to work seamlessly with any OEM head unit, simplifying installation and enhancing versatility.
Upgrade your audio experience with our high-end marine amplifiers. Whether you're on the water, off-road, or cruising the highway, these amplifiers deliver the power, reliability, and sound quality you demand. Embrace the ultimate in audio performance and rugged durability today.
Specs:
• RMS Power Rating: 600W RMS
• RMS Power (2Ω): 300W x 2
• RMS Power (4Ω): 200W x 2
• RMS Bridged (mono 4Ω): 600W x 1
• Topology: Full Range Digital Class D
• Frequency Response: 10Hz - 33KHz
• Bass Boost: 0-18dB
• Gain Ranges: 0.2-10V
• Distortion - THD (1KHz@4Ω): <0.3%
• Distortion - S/N Ratio (A weight @ 1W): >102dB
• Crossover Frequencies: 40 - 400Hz
• FUSE Ratings - ATC: 35A
• Dimension: 9.5″ x 4.3″ x 1.7″ (241.6 x 110 x 44 mm)
Features:
• IPX67 RATED Waterproof multi-layer circuit boards
• Direct FET power MOSFET output stage
• Selectable 3 option Auto Turn-On Mode circuit
• Crossover Filter: 40-400Hz, 12dB Per Octave Slope
• Selectable X-Over: LPF / FULL / HPF
• Disconnected RCA Input & Speaker Output Harness Kits Included
