Product Overview

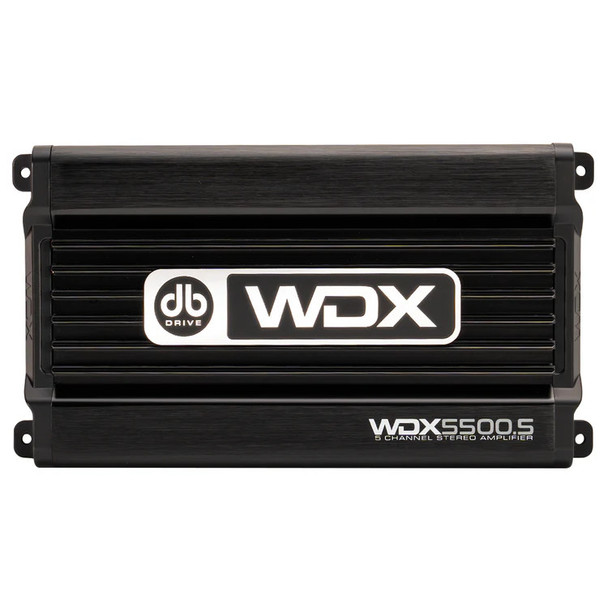

DB Drive WDX5500.5 | 2100W 5 Channel Full Range Amplifier
Specs:
• Rated Power @ 14.4 Volts
• 4 x 200 Watts @ 4 Ohm + 500 Watts @ 2 Ohm
• 4 x 400 Watts @ 2 Ohm + 500 Watts @ 2 Ohm
• Frequency Response: 20Hz ~ 22KHz
• S/N Ratio: < 105 dB
• Low Level Input: 6V – 0.2V
• Independent Selectable X-Over F/R: HPF / LPF / FULL
• Variable High Pass Filter (12DB Slope): 40Hz ~ 300Hz
• Variable Low Pass Filter (12DB Slope): 40Hz ~ 300Hz
• Variable Subsonic Filter (12 dB Slope): 0Hz ~ 25Hz
• Bass Equalizer: 0dB – 12dB
• Working Voltage: 12-15 Volts
• Dimensions (L x W x H): 10.63" x 5.5" x 2.38"
Features:
• CLASS D CIRCUITRY
• Direct Connect Speaker Terminals
• 4 Gauge Power Wire Input
• CHM - Collective Heat Management
• ACT – Adaptive Crossover Technology
• SESI – Signal Evaluation Status Indicator
• APC – Audio Protection Circuit
• Included Remote Level Control
