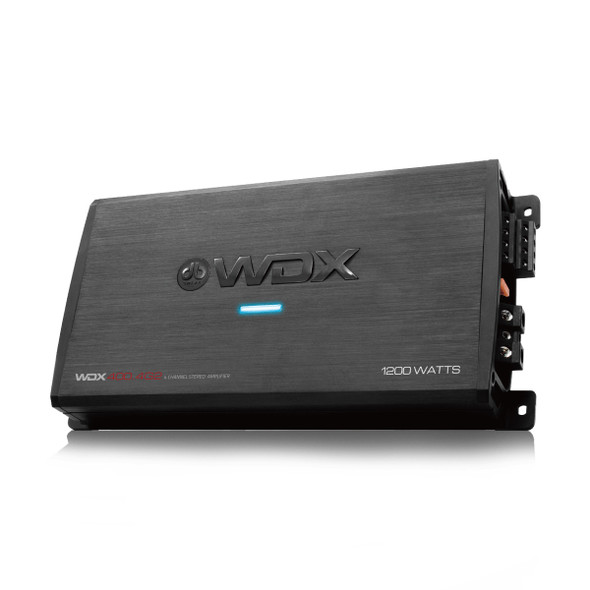

DB Drive WDX200.4 | 1200W 4 Channel Full Range Amplifier

DB Drive WDX200.4 | 1200W 4 Channel Full Range Amplifier

Specs:

• Rated Power @ 14.4 Volts

• 4 x 200 Watts @ 4 Ohm

• 4 x 300 Watts @ 2 Ohm

• 2 x 300 Watts @ 4 Ohm Bridged

• Frequency Response: 20Hz ~ 22KHz

• S/N Ratio: < 105 dB

• Low Level Input: 6V – 0.2V

• Independent Selectable X-Over F/R: HPF / LPF / BP / FULL

• Variable High Pass Filter (12DB Slope): 20Hz ~ 5KHz

• Variable Low Pass Filter (12DB Slope): 50Hz ~ 5KHz

• Bass Equalizer: 0dB – 9dB

• Working Voltage: 12-15 Volts

• Dimensions (L x W x H): 9" x 5.5" x 2.38"

Features:

• CLASS D CIRCUITRY

• Direct Connect Speaker Terminals

• 4 Gauge Power Wire Input

• CHM - Collective Heat Management

• ACT – Adaptive Crossover Technology

• SESI – Signal Evaluation Status Indicator

• APC – Audio Protection Circuit
