Product Overview

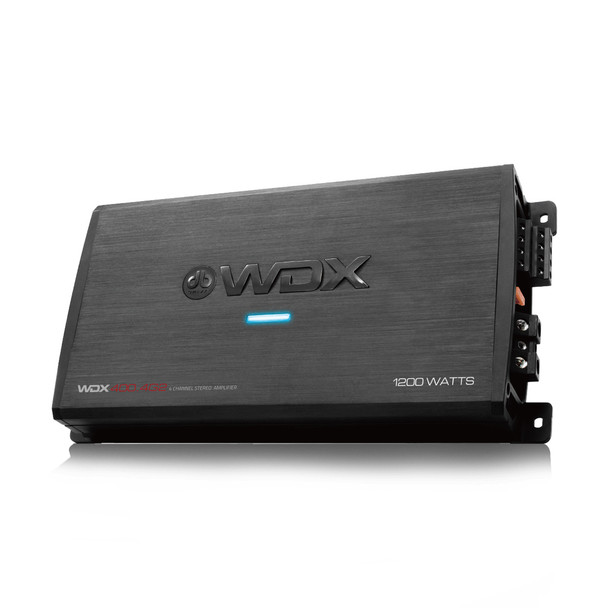

DB Drive WDX 400.4G2 | 1200W Max 4 Channel Full Range Amplifier
The DB Drive WDX amplifiers includes built-in variable crossovers. The WDX400.4G2 also offers independent 12dB per octave High Pass and Low Pass X-Over Network. For added low frequency performance the amplifiers are equipped with a selectable 6dB-12dB bass boost @ 45Hz.
Specs:
• Rated Power @ 14.4 Volts
• 4 x 80 Watts @ 4 Ohm
• 4 x 160 Watts @ 2 Ohm
• 2 x 250 Watts @ 4 Ohm Bridged
• Frequency Response: 10Hz ~ 250Hz
• S/N Ratio: < 105 dB
• Independent Selectable X-Over F/R: HPF / LPF /LP-BP
• Variable High Pass Filter: 50Hz ~ 5KHz
• Variable Low Pass Filter: 50Hz ~ 500Hz
• Damping Factor: 200m<
• Dimensions (L x W x H): 13.3" x 7.08" x 2.25"
Features:
• 2 Ohm Stereo Capability
• Blue LED POWER-ON Indicator
• Variable Low Level RCA Input
• Variable 12dB Per Octave Low-Pass X-Over
• Direct-Connect Speaker Terminals
• Buffered Pre-Amp Input
• Selectable 6dB-12dB Boost @ 45Hz
• DRIVESINK Heat Management System
• Unregulated DB-DC PWM Power Supply
• Speaker Short Circuit Protection
