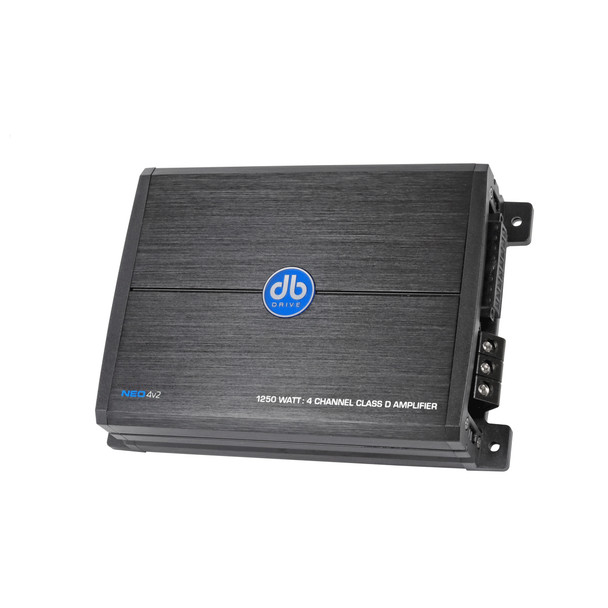

DB Drive NEO4v2 | 1000W 4 Channel Full Range Amplifier

DB Drive NEO4v2 | 1000W 4 Channel Full Range Amplifier

The NEO4v2 features a built-in variable crossovers. For added low frequency performance the amplifier is equipped with a selectable 6dB-12dB Bass Boost @ 45Hz.

Specs:

• Rated Power @ 14.4 Volts

• 4 x 125 Watts @ 4 Ohm

• 4 x 250 Watts @ 2 Ohm

• 2 x 500 Watts @ 4 Ohm Bridged

• THD: 0.04%

• Bandwidth (-3 dB): 18Hz ~ 22KHz

• Damping Factor: 100

• S/N ratio (as weighted @ 1 Volt): 99dB

• Input Sensitivity: 0.20V ~ 9.0V RMS

• Minimum Load Impedance: 2 Ohm

• Channel 1-2 Filter Range: 55Hz ~ 750Hz

• Channel 3-4 Filter Range: 55Hz ~ 750Hz

• Dimensions (L x W x H): 6.8" x 5.3" x 1.88"

Features:

• 4 Channel Full Range Class D Technology

• 2 Ohm Mono load Capability

• Amphibious Grade Conformal Coating on PCB

• Audiophile Grade RCA Connectors

• Variable 12dB High/Low-Pass Crossover Filters

• Bridgeable Outputs @ 4 Ohm Load

• Double Sided Circuit tablet

• Compatible With Any 4/2 Ohm Loudspeaker
