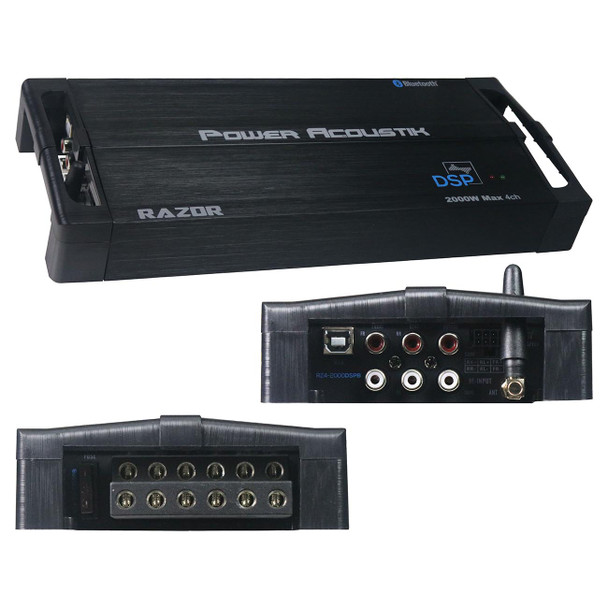

Power Acoustik Razor 2000W Max 4 Channel Full Range Amplifier w/ Built-In DSP | RZ42000DSP
Small size doesn’t mean you have to sacrifice big power for your system. Razor amplifiers pack huge power into small chassis thanks to efficient Full-Range Class D topology and SMT circuitry. Complimented with every possible preamp adjustment, the Razor amplifiers leave nothing to be desired…
Are you using an original or factory radio? No problem, these amplifiers are equipped with an Automatic Hi-Level Signal Sensing Turn-On. There is no need to run a remote wire turn on; this amplifier will automatically detect the sound signal and turn on and off the amplifier. (Hi-Level Input only)
Specs:
• 250W RMS X 4 @ 2 Ohms
• 160W RMS X 4 @ 4 Ohms
• 500W RMS X 2 @ 4 Ohms Bridged
• Dimensions (WxHxL): 4.75” x 1.625” x 11”
• Fuses: 1 X 40A
General Features:
• 2 Ohm Stable
• Class-D Technology
• Military Grade SMT PCB
• MOSFET Power Supply w/ Audiophile Grade IR Transistors
• Die-Cast Aluminum Alloy Heatsink for Optimum Dissipation
• Direct Short, Thermal, & Overload Circuit Protection
• Variable 12dB High Pass, Low Pass, & Subsonic Crossovers
• 200MV-6V Low-Level RCA Inputs
• 8GA Power Wire & 12GA Speaker Wire Outputs
• High-Level Input w/ Signal Sense Auto Turn-on
DSP Features:
• Integrated 100dB Dynamic Range, -80dB THD+N ADC
• Integrated 104dB Dynamic Range, -90dB THD+N DAC
• User Friendly SigmaStudioTM User Interface w/ Response Display
• 30V MAX 4-ch High Level & 4V MAX RCA Input Voltage
• 2ch. RCA output for Subwoofer Amplifier Integration
• Optional High-Level Input from Hands-Free Bluetooth Module
• Optional Independent Input or Channel Mixing/Summing
• Up to +6dB / -60dB Master Input Level
• Up to -60dB Independent Channel Level Cut
• Up to 20ms Independent Channel Delay, 0.05ms Increments
• Independent Channel 0/180 Phase Control
• Independent Channel High, Low or Bandpass Crossover
• Independent Channel 6dB-48dB/Octave Crossover Slope
• Variable Frequency Crossover Setting, 20Hz-20kHz
• 10-Band Graphic Equalizer for Each Channel
• 20dB Boost/Cut for Each Band
• Variable Independent Band Q Adjustment, 0.4-9.6
