Product Overview

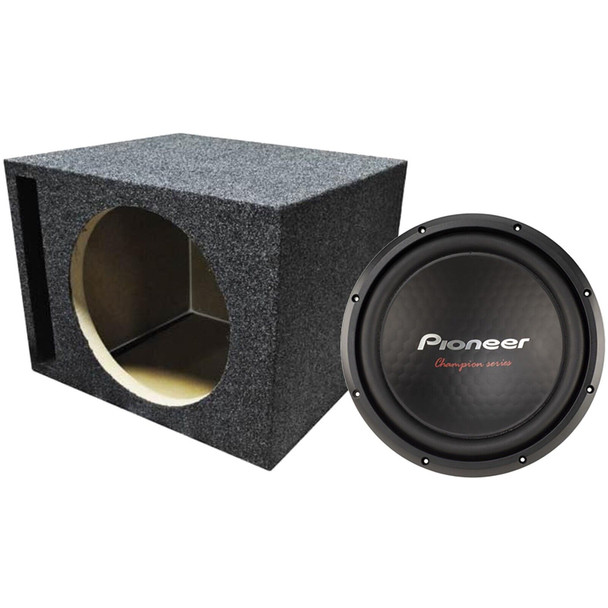

Pioneer Champion TS-A301D4 Package | 12 Inch 1600W DVC 4 Ohm Subwoofer & QPower HD Ported Box
The Champion Series subwoofers have evolved from Pioneer’s award-winning “SPL Champion Edition” lineup, known for its deep and powerful bass production. The TS-A301D4 12” dual-voice coil component subwoofer features a re-designed large and powerful motor assembly for improved efficiency and sensitivity. The subwoofer baskets are optimized using a reinforced structure design for added strength and reduced vibration to deliver excellent sound quality. This subwoofer has a continuous power of 500 watts with a maximum peak of 1,600 watts. It features an advanced 2-piece cone designed with a highly rigid and durable Honeycomb IMPP™ composite cone structure plus a rigid drive cone to deliver high output levels with reduced distortion.
Subwoofer Specs:
• MAX Power Handling: 1600W
• RMS Power Handling: 500W
• Mounting Depth: 6.125"
• Weight: 15.00 lbs.
Subwoofer Features:
• Dual 4 Ohm Voice Coils
• Honeycomb IMPP Composite Cone Structure
• Dual Layer Fiber Reinforced Elastic Polymer Surround
• 90oz Ferrite Magnet Structure
• Vented Pole Yoke
• Reinforced Stamped Steel Basket
Box Specs:
• Type of Enclosure: Vented
• Enclosure Sub Size: 12.00"
• Dimensions: 18" L x 16" D x 13.25" H
• Top and Bottom Depth: 16.00"
• Maximum Mounting Depth: 14.00"
• Tuning Frequency: 37Hz
• Net Volume: 1.50 Cubic Feet
Box Features:
• 3/4" USA Heavy Duty MDF Construction.
• Machine Precision Cut Mounting Holes.
• Top of The Line Glue For Extra Durable Adhesion.
• High Quality Spring Loaded Terminals.
