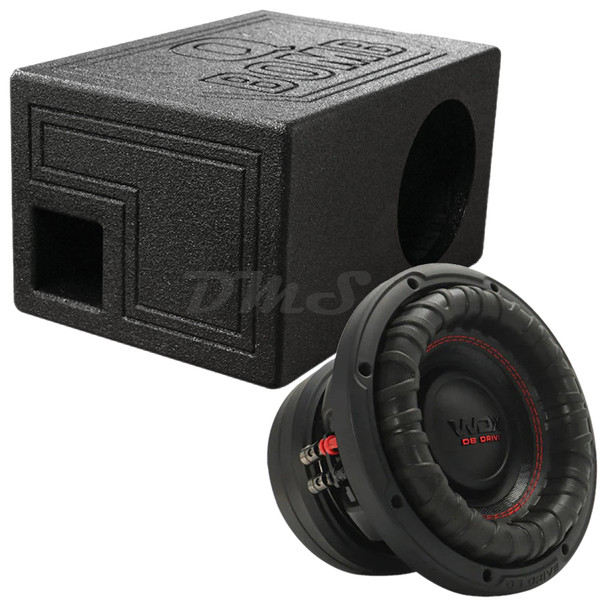

DB Drive WDX8G2R.2 Package | 8 Inch 1500W Max DVC 2 Ohm Subwoofer & QBomb Ported Box

DB Drive WDX8G2R.2 Package | 8 Inch 1500W Max DVC 2 Ohm Subwoofer & QBomb Ported Box

Designed for true bass enthusiasts, the WDX 8 G2R subwoofers offer unmatched power and precision. Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass. (WDX 8 G2R 2 Ohm)

Subwoofer Details:

• Max Power Handling: 1500W

• RMS Power Handling: 750W

• Impedance: DVC 2 Ohm

• Resonant Frequency (fs): 37.64Hz

• Mechanical Quality Factor (Qms): 3.44

• Electrical Quality Factor (Qes): 0.73

• Total Quality Factor (Qts): 0.60

• Equivalent Air Volume (Vas): 6.47 L

• Mechanical Compliance of Suspension (CMS): 112.636 mm/N

• Mass of Diaphragm/Coil (Mms): 158.77 g

• Force Factor (BL): 14.38

• Sound Pressure Level (SPL): 78.6 dB

• X-max: 13 mm

• Outside Diameter: 8.78"

• Mounting Diameter: 7.36"

• Mounting Depth: 5.55"

• 2.5" Anodized Aluminum High Temperature Voice coil

• Non-Pressed Paper Cone

• Double Stitched Reinforced Foam Surround

• Dual Poly-Cotton Dampeners

• Die-Cast Aluminum Vented Basket

• Rubber Gasket Trim Ring

• Large Gauge Compression Terminals

• Protective Magnet Cover

Box Details:

• 3/4" MDF Construction

• Machine Precision Cut Mounting Hole

• Top Of The Line Glue For Extra Durable Adhesion

• High Quality Spring Loaded Wire Terminal

• Type of Enclosure: Vented

• Enclosure Sub Size: 8"

• Dimensions: 18" W x 10" H x 13" D

• Top & Bottom Depth: 13"

• Tuning Frequency: 34Hz

• Internal Volume: 1.0 Cubic Feet
