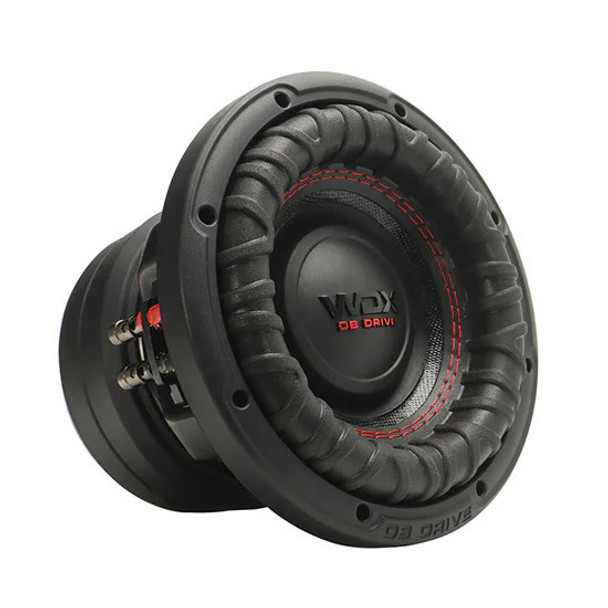

DB Drive WDX6.5G2R.4 | 6.5 Inch 1500W Max DVC 4 Ohm Subwoofer | WDX G2R 6.5"

(1) DB Drive WDX6.5G2R.4 | 6.5 Inch 1500W Max DVC 4 Ohm Subwoofer | WDX G2R 6.5"

Designed for true bass enthusiasts, the WDX 6.5 G2R subwoofers offer unmatched power and precision. Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass.

Specs:

• Max Power Handling: 1500W

• RMS Power Handling: 750W

• Impedance: DVC 4 Ohm

• Resonant Frequency (fs): 44.272 Hz

• Mechanical Quality Factor (Qms): 3.123

• Electrical Quality Factor (Qes): 0.788

• Total Quality Factor (Qts): 0.629

• Equivalent Air Volume (Vas): 3.459 L

• Mechanical Compliance of Suspension (CMS): 118.883 mm/N

• Mass of Diaphragm/Coil (Mms): 108.710 g

• Force Factor (BL): 15.671

• Sound Pressure Level (SPL): 77.7 dB

• X-max: 15 mm

• Outside Diameter: 7.16"

• Mounting Diameter: 6.0"

• Mounting Depth: 4.76"

Features:

• 2.0" Anodized Aluminum High Temperature Voice coil

• Non-Pressed Paper Cone

• Double Stitched Reinforced Foam Surround

• Dual Poly-Cotton Dampeners

• Die-Cast Aluminum Vented Basket

• Rubber Gasket Trim Ring

• Large Gauge Compression Terminals

• Protective Magnet Cover

• Recommended Ported Box Volume: 0.88 Cubic Feet
