Product Overview

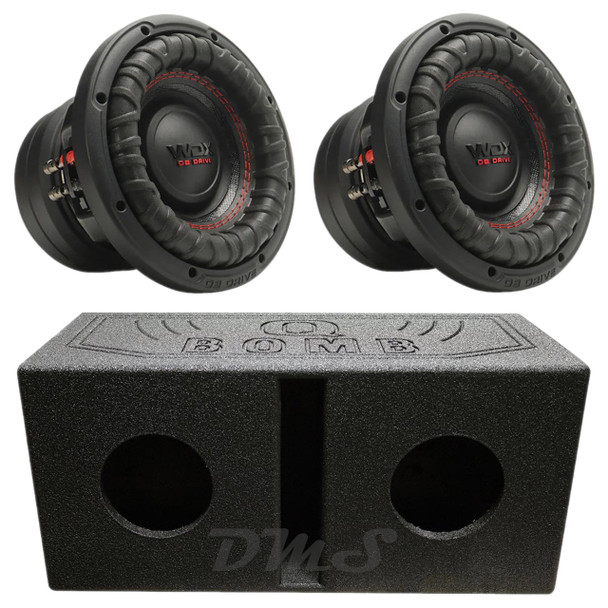

DB Drive WDX6.5G2R.2 Package | Dual 6.5 Inch 1500W DVC 2 Ohm Subwoofers & QBomb Ported Box
Designed for true bass enthusiasts, the WDX 6.5 G2R subwoofers offer unmatched power and precision. Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass. (WDX 6.5 G2R 2 Ohm)
Subwoofer Details (each):
• Max Power Handling: 1500W
• RMS Power Handling: 750W
• Impedance: DVC 2 Ohm
• Resonant Frequency (fs): 47.28 Hz
• Mechanical Quality Factor (Qms): 3.79
• Electrical Quality Factor (Qes): 0.88
• Total Quality Factor (Qts): 0.72
• Equivalent Air Volume (Vas): 3.97 L
• Mechanical Compliance of Suspension (CMS): 136.548 mm/N
• Mass of Diaphragm/Coil (Mms): 83.00 g
• Force Factor (BL): 10.57
• Sound Pressure Level (SPL): 78.6 dB
• X-max: 15 mm
• Outside Diameter: 7.16"
• Mounting Diameter: 6.0"
• Mounting Depth: 4.76"
• 2.0" Anodized Aluminum High Temperature Voice coil
• Non-Pressed Paper Cone
• Double Stitched Reinforced Foam Surround
• Dual Poly-Cotton Dampeners
• Die-Cast Aluminum Vented Basket
• Rubber Gasket Trim Ring
• Large Gauge Compression Terminals
• Protective Magnet Cover
Box Details:
• 3/4" MDF Construction
• Machine Precision Cut Mounting Hole
• Top Of The Line Glue For Extra Durable Adhesion
• High Quality Spring Loaded Wire Terminal
• Durable Textured Black Bed Liner Coating
• Type of Enclosure: Dual Vented
• Enclosure Sub Size: Dual 6.5"
• Dimensions: 28" W x 13" H x 13" D
• Top & Bottom Depth: 13"
• Tuning Frequency: 40Hz
• Internal Volume: 1.0 Cubic Feet Per Sub
