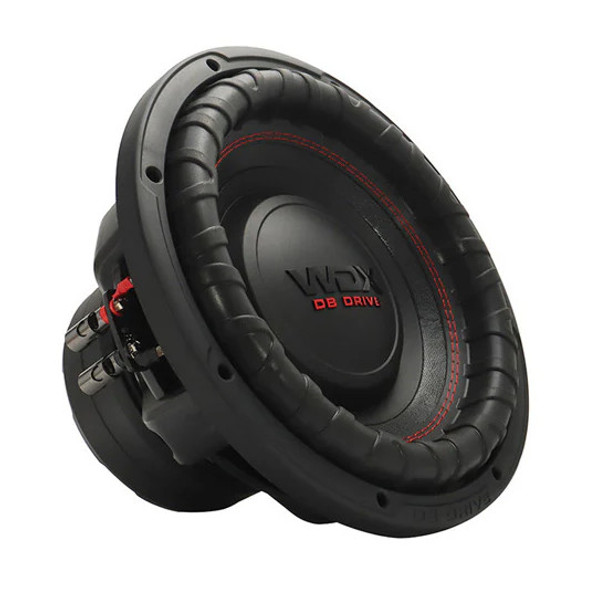

DB Drive WDX12G2R.4 | 12 Inch 2500W Max DVC 4 Ohm Subwoofer | WDX G2R 12"

(1) DB Drive WDX12G2R.4 | 12 Inch 2500W Max DVC 4 Ohm Subwoofer | WDX G2R 12"

Designed for true bass enthusiasts, the WDX 12 G2R subwoofers offer unmatched power and precision. Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass.

Specs:

• Max Power Handling: 2500W

• RMS Power Handling: 1250W

• Impedance: DVC 4 Ohm

• Resonant Frequency (fs): 33.597Hz

• Mechanical Quality Factor (Qms): 4.413

• Electrical Quality Factor (Qes): 1.253

• Total Quality Factor (Qts): 0.976

• Equivalent Air Volume (Vas): 22.153 L

• Mechanical Compliance of Suspension (CMS): 57.973 mm/N

• Mass of Diaphragm/Coil (Mms): 387.090 g

• Force Factor (BL): 20.429

• Sound Pressure Level (SPL): 80.1dB

• X-max: 20 mm

• Outside Diameter: 12.95"

• Mounting Diameter: 11.18"

• Mounting Depth: 7.28"

Features:

• 3" Anodized Aluminum High Temperature Voice coil

• Non-Pressed Paper Cone

• Double Stitched Reinforced Foam Surround

• Dual Poly-Cotton Dampeners

• Die-Cast Aluminum Vented Basket

• Rubber Gasket Trim Ring

• Large Gauge Compression Terminals

• Protective Magnet Cover

• Recommended Ported Box Volume: 2.60 Cubic Feet
