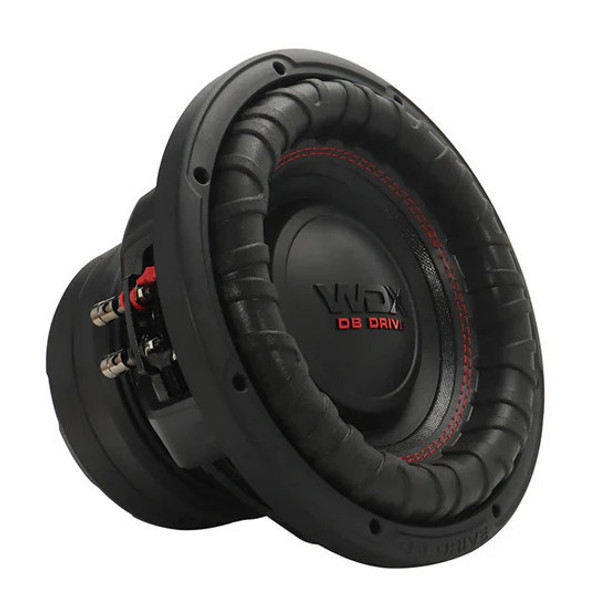

DB Drive WDX10G2R.2 | 10 Inch 2200W Max DVC 2 Ohm Subwoofer | WDX G2R 10"

(1) DB Drive WDX10G2R.2 | 10 Inch 2200W Max DVC 2 Ohm Subwoofer | WDX G2R 10"

Designed for true bass enthusiasts, the WDX 10 G2R subwoofers offer unmatched power and precision. Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass.

Specs:

• Max Power Handling: 2200W

• RMS Power Handling: 1100W

• Impedance: DVC 2 Ohm

• Resonant Frequency (fs): 32.536 Hz

• Mechanical Quality Factor (Qms): 3.731

• Electrical Quality Factor (Qes): 0.966

• Total Quality Factor (Qts): 0.768

• Equivalent Air Volume (Vas): 16.974 L

• Mechanical Compliance of Suspension (CMS): 94.146 mm/N

• Mass of Diaphragm/Coil (Mms): 254.158 g

• Force Factor (BL): 18.551

• Sound Pressure Level (SPL): 79.7 dB

• X-max: 20 mm

• Outside Diameter: 10.98"

• Mounting Diameter: 9.47"

• Mounting Depth: 6.81"

Features:

• 3.0" Anodized Aluminum High Temperature Voice coil

• Non-Pressed Paper Cone

• Double Stitched Reinforced Foam Surround

• Dual Poly-Cotton Dampeners

• Die-Cast Aluminum Vented Basket

• Rubber Gasket Trim Ring

• Large Gauge Compression Terminals

• Protective Magnet Cover

• Recommended Ported Box Volume: 1.77 Cubic Feet
